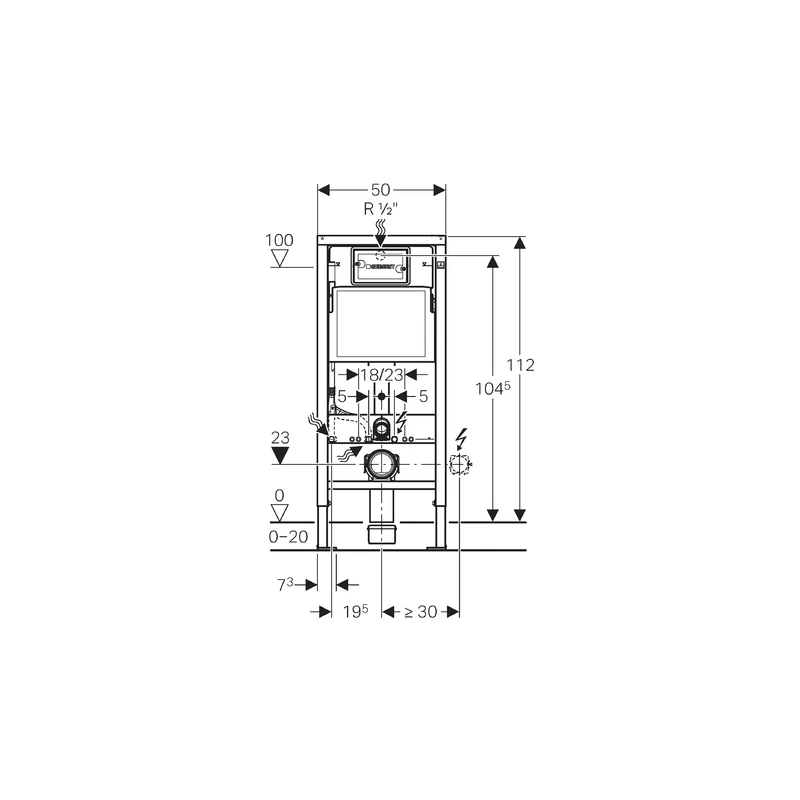

Geberit Duofix 112cm WC Frame With Delta50 Flush Plate

Geberit Duofix frame for wall-hung WC, 112 cm, with Delta concealed cistern 12cm, flush plate Delta50
For drywall construction
For installation in part- or room-height prewall installations
For installation in room-height installation walls
For wall-hung WCs with connection dimensions in accordance with EN 33:2011

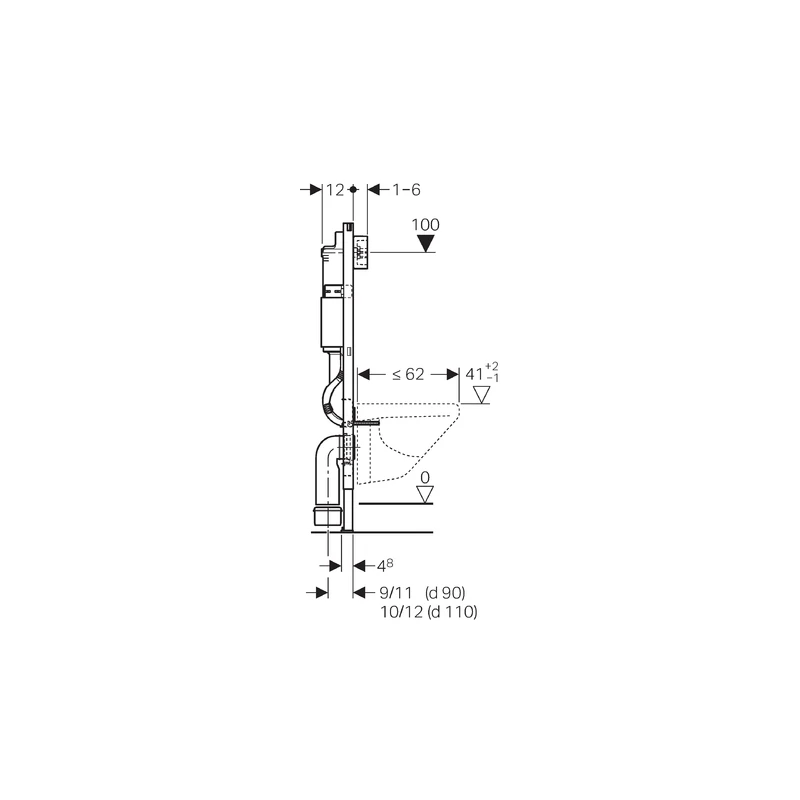

For wall-hung WCs with projection up to 62cm
For floor constructions 0-20cm
Self-supporting frame, powder-coated
Frame top open
9mm drilling holes for fastening in wood frame construction
Frame with holes to receive Geberit Duofix wall anchors for elements with frame top open
Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
Galvanized feet
Feet adjustable 0-20cm
Foot plates made of plastic
Foot plate depth suitable for installation in U-profiles UW 50
Connection bend can be mounted without tools
Concealed cistern with front actuation
Concealed cistern fully insulated against condensation
Cistern fulfils standard requirements in accordance with EN 14055, Class II
Immediate post flush possible with factory setting
Water supply connection on the rear or top centre
Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
With fastening option for electrical connection
Maximum operating water temperature 25°C
Flush volume, factory setting 5.8 and 3 litre
Flush volume large, adjustment range 4.5 / 6 / 7.5 litre
Flush volume small, adjustment range 3-4 litre
Angle stop valve R?1/2″ with adaptor ring
Protection box for service opening, made of polystyrene foam
2 distance bolts
Flush plate Delta50
2?wall anchors
Connection set for WC, diameter 90mm
Adaptor socket made of PE-HD, diameter 90 / 110mm
Connection bend 90° made of PE-HD, diameter 90 mm
2 protection plugs
Crossbar for panelling support
2 threaded rods M12
Fastening material
